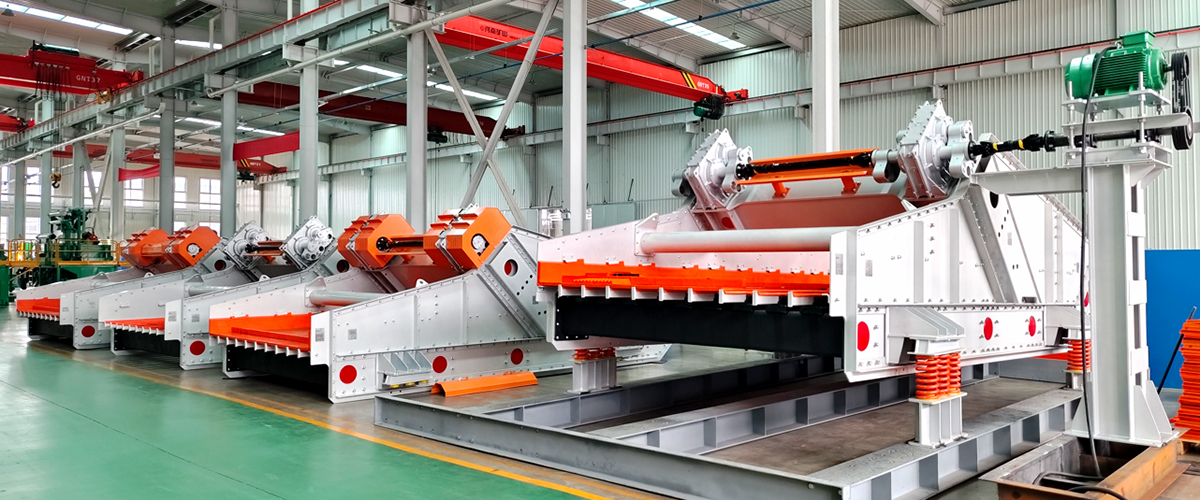

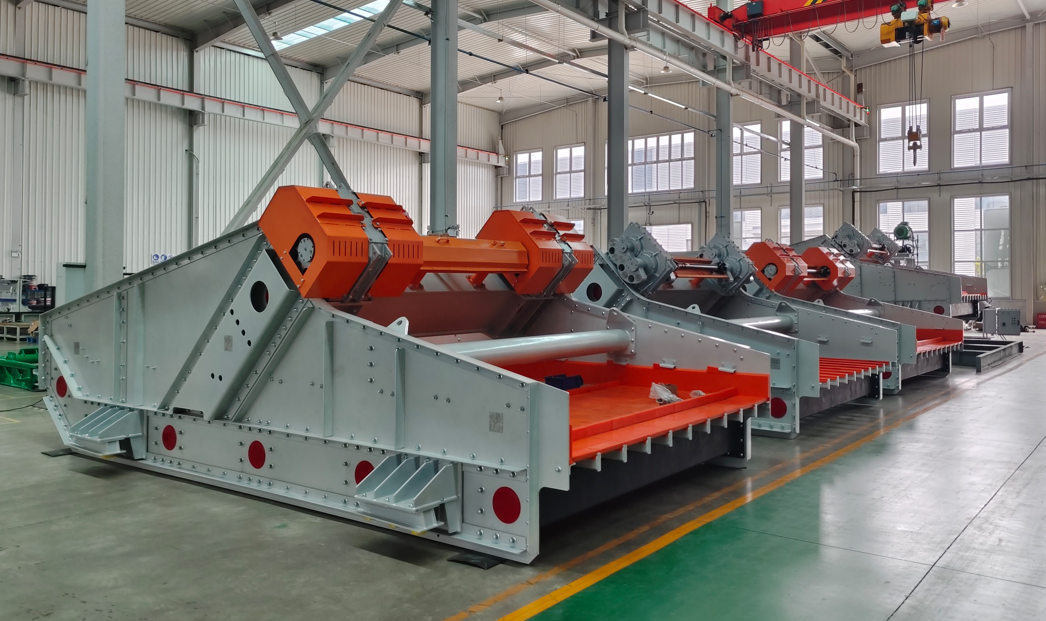

The GN Dewatering Vibrating Screen is a high-performance solid-liquid separation equipment widely applied in mining, coal processing, construction materials, metallurgy, and chemical industries. As a core product of GN SOLIDS CONTROL, it is engineered to deliver efficient dewatering, desliming, and dry tailings discharge under various challenging operating conditions.
The design of the GN dewatering vibrating screen incorporates advanced engineering techniques, including finite element analysis and anti-fatigue design, ensuring a robust and durable structure. GN SOLIDS CONTROL focuses on optimizing the structural integrity of the equipment, allowing it to operate reliably in abrasive and corrosive environments while maintaining low energy consumption and high processing capacity.
A key feature of the GN dewatering vibrating screen is its linear motion generated by two vibrating motors operating under the principle of reverse self-synchronization. This design enables the screen body to move in a controlled linear trajectory, which enhances material stratification and improves solid-liquid separation efficiency. The synchronized vibration is a hallmark of GN SOLIDS CONTROL engineering excellence.
The vibration force direction and its angle relative to the horizontal plane can be customized according to material characteristics. This flexibility allows GN SOLIDS CONTROL equipment to adapt to different site conditions, controlling material residence time and optimizing throughput. As a result, the GN dewatering vibrating screen can handle high feed rates while achieving effective moisture reduction.
In operation, material is fed directly from a feed tank or cyclone onto the screen surface. Under the influence of vibration, the liquid phase passes through the screen while solid particles are transported forward and discharged separately. This process, developed by GN SOLIDS CONTROL, ensures continuous and efficient processing, minimizing downtime and maximizing productivity.
The GN dewatering vibrating screen is also highly customizable. GN SOLIDS CONTROL provides tailored solutions in terms of screen size, structure, and configuration to meet specific customer requirements. This makes it suitable for a wide range of applications, including tailings treatment and dry discharge systems.
With stable performance, large capacity, and high efficiency, the GN dewatering vibrating screen represents the advanced engineering standards of GN SOLIDS CONTROL, delivering reliable performance in modern industrial solid-liquid separation processes.
