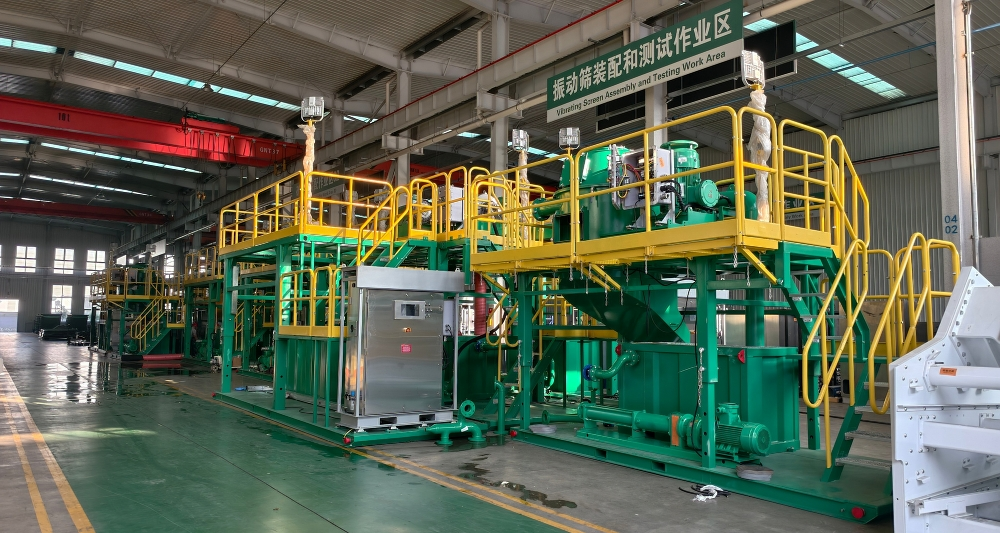

Optimizing CBM Drilling Efficiency: GN Delivered A 5-Stage Solids Control System for Indian Drilling Company

Coalbed Methane (CBM) extraction stands as one of the most fast-growing segments in the global unconventional energy sector, yet its unique operational environment continues to push traditional drilling fluid processing systems to their limits. Unlike conventional oil and gas reservoirs where hydrocarbons are stored in porous rock structures, CBM deposits trap methane molecules directly adsorbed onto the internal surface area of coal seam matrices. To unlock this resource, operators must first systematically dewater the reservoir to reduce bottomhole pressure, a process that triggers the release of large volumes of fine coal cuttings, abrasive silts, and water-reactive smectite clays into the active drilling fluid loop. Without a purpose-built multi-stage separation architecture, these ultra-fine solids rapidly degrade mud rheology, accelerate pump and bit wear, increase equivalent circulating density, and drastically elevate the risk of wellbore instability, stuck pipe incidents, and costly non-productive time across the entire drilling campaign. GN Separation is a professional solution designer for this application and in a recent project, GN just delivered such a system to a drilling company in India.

The 5-Stage Progressive Separation Workflow: Engineered for CBM-Specific Challenges

Unlike conventional 3-stage or 4-stage mud recycling skids that often leave significant volumes of 2–10 μm ultra-fine coal fines suspended in the drilling fluid, the GN 5-Stage CBM Solids Control System adopts a step-by-step separation logic tailored to the full lifecycle of CBM well construction. The process begins with a high G-force linear-motion shale shaker fitted with API-certified 40–200 mesh interchangeable screens, designed to remove 100% of coarse cuttings larger than 74 μm immediately upon fluid return from the wellbore. This primary stage eliminates oversize particles that would otherwise damage downstream hydrocyclone inlets and decanter centrifuge feed ports, extending the service life of all subsequent process equipment by more than 35% compared to standard single-shaker setups.

Following initial screening, a dedicated vacuum degasser removes entrained gas pockets and dissolved methane from the drilling fluid, a critical safety step that prevents sudden mud density fluctuations and eliminates the risk of gas kicks in low-pressure coal seam formations. The third and fourth stages deploy a hydrocyclone desander and desilter in sequence, removing 95% of 30–74 μm sand particles and 90% of 15–30 μm silt fractions respectively, before the final variable-frequency decanter centrifuge targets the remaining 2–15 μm ultra-fine coal and clay particles. This layered separation approach ensures that mud density is consistently maintained within ±0.02 g/cm³ of the target value, while viscosity and yield point remain stable across hundreds of hours of continuous drilling operation.
