GN Large Linear Vibrating Screen

The GN Large Linear Vibrating Screen is a heavy-duty screening solution designed for high-capacity material separation across a wide range of industries. With its linear motion and robust structure, this screen is widely used in demanding applications where efficiency, stability and reliability are critical.

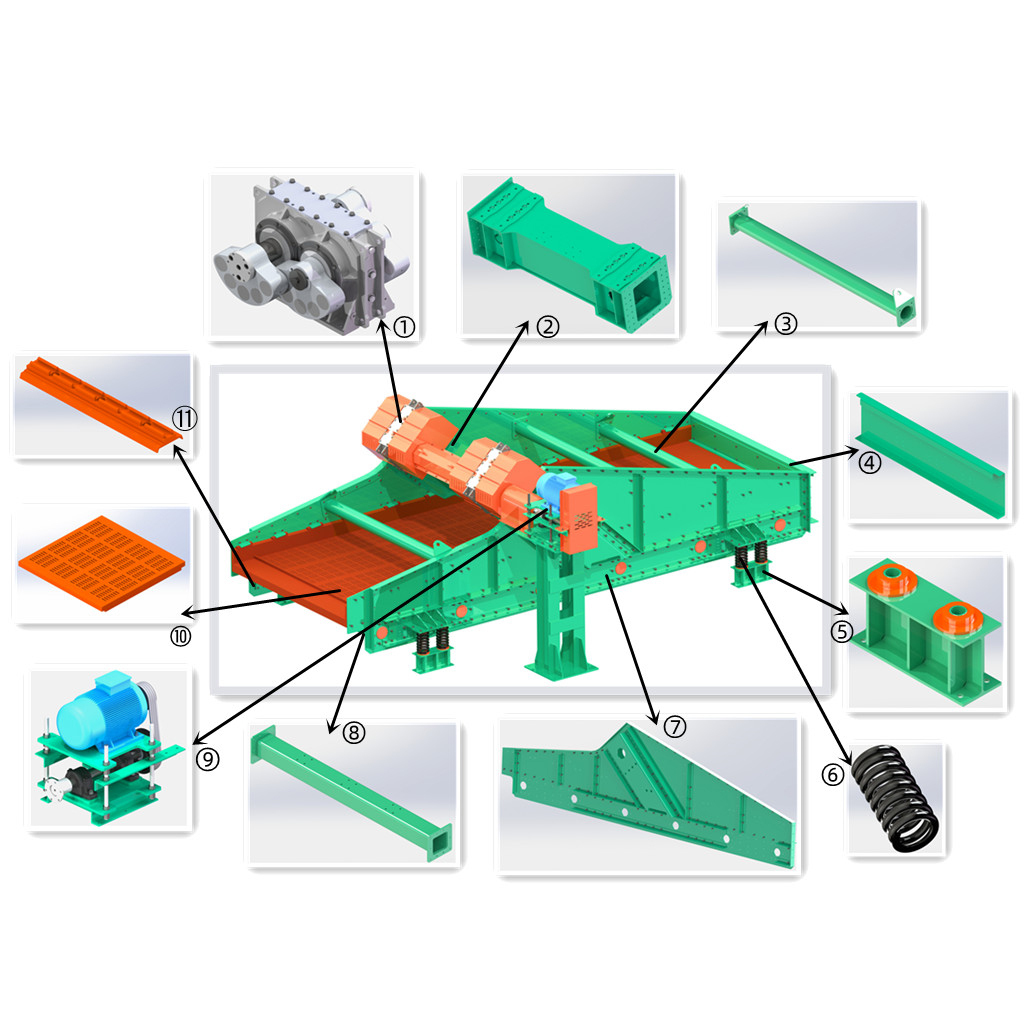

Structurally, the GN Large Linear Vibrating Screen is mainly composed of a box-type vibration exciter, screen box, vibration damping springs, support structure and driving device. The vibration exciter generates a stable linear vibration track, allowing material to move evenly across the screen surface. Depending on site requirements, the screen can be arranged horizontally or at an inclined angle, providing flexibility in process design and installation.

One of the key advantages of the GN Large Linear Vibrating Screen is its versatility. It is commonly applied in wet classification, dewatering, demineralisation and tailings dry discharge processes. These applications are essential in industries such as mineral processing, coal preparation, gravel and aggregate production, building materials and chemical processing. The linear motion helps improve screening efficiency while reducing material buildup and screen blinding.

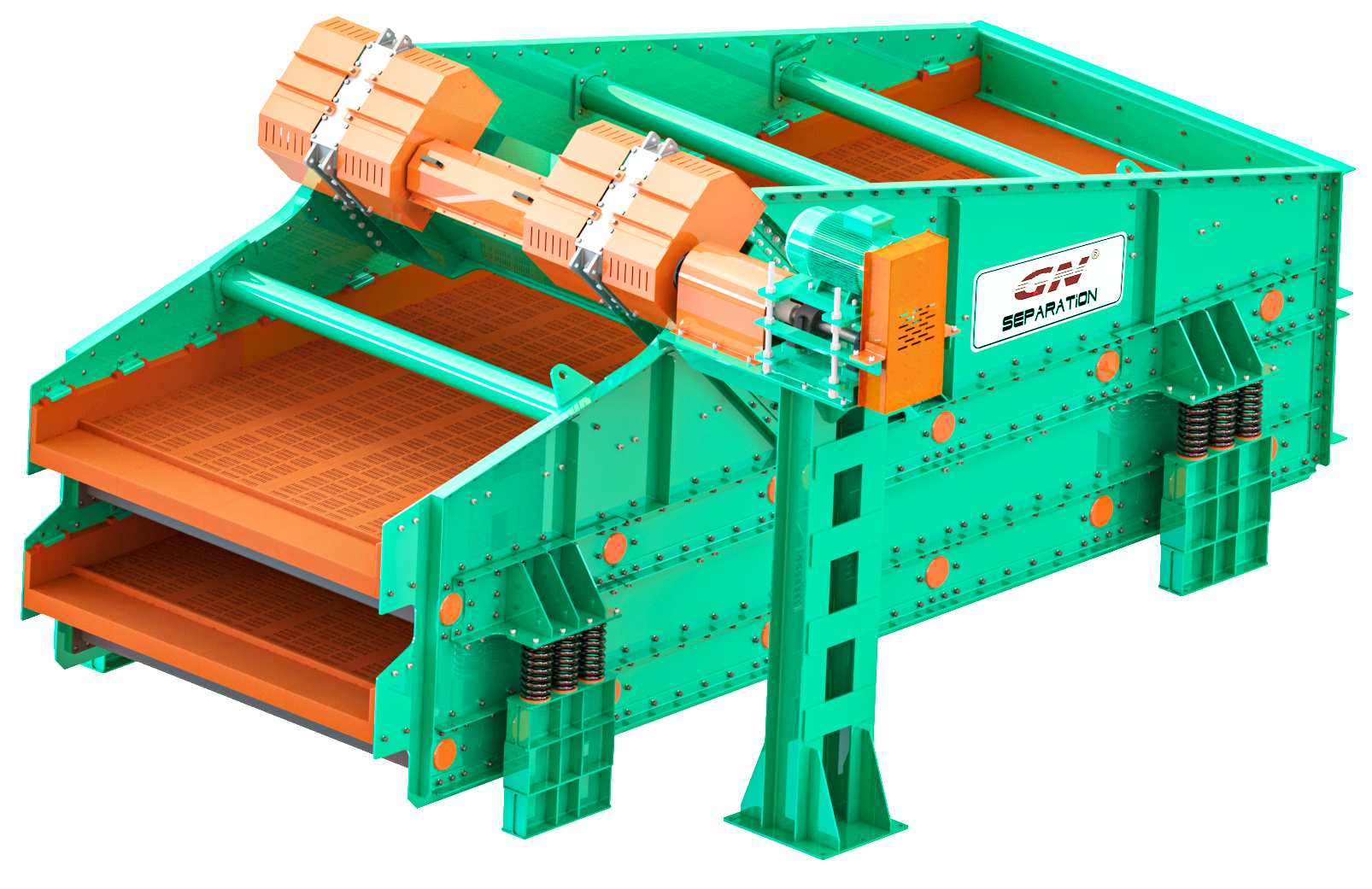

The screen surface structure of the GN Large Linear Vibrating Screen can be configured as single-layer or double-layer, depending on separation requirements. This allows operators to optimise cut points and throughput for different materials. In addition, screen unit models can be customised to match specific customer requirements, including capacity, screen size and installation conditions.

By combining a strong mechanical design with flexible configuration options, the GN Large Linear Vibrating Screen offers a reliable and efficient solution for large-scale screening and dewatering operations, helping operators achieve stable performance and consistent product quality.
