In the ever-evolving field of environmental engineering, efficient sludge dewatering remains a critical challenge, especially in oil-contaminated soil remediation projects. Recently, GN’s GNLW654-VFD sludge dewatering centrifuge achieved a remarkable milestone with its successful on-site commissioning in the Middle East. This cutting-edge equipment, designed specifically for dewatering floating sludge from oil-contaminated soil washing slurries after air flotation sedimentation, has demonstrated exceptional performance and reliability.
Mechanical Principles of the GNLW654-VFD Centrifuge
The GNLW654-VFD is a state-of-the-art horizontal decanter centrifuge engineered for high-efficiency solid-liquid separation. Its core mechanism revolves around centrifugal force generated by a rotating drum, which separates solids from liquids based on density differences. The centrifuge features a variable frequency drive (VFD) system, allowing adjustable rotational speeds from 0 to 3200 RPM, ensuring optimal performance for varying sludge consistencies.
The sludge feed enters the rotating drum through an inlet pipe, where the high-speed rotation creates a centrifugal force field. Heavier solid particles are pushed outward against the drum wall, forming a compacted solids layer, while the clarified liquid flows toward the center and exits via the overflow weir. A helical conveyor, rotating at a slightly different speed, continuously pushes the dewatered solids toward the discharge ports. The GNLW654-VFD’s precision-engineered spiral and drum geometry ensure minimal wear and maximum separation efficiency, even with abrasive oil-contaminated sludge.
Key Innovations and Customizations
Material Durability: The centrifuge’s drum and conveyor are constructed from duplex stainless steel, offering superior corrosion resistance. Critical wear-prone components, such as the discharge ports and conveyor flights, are protected with tungsten carbide alloy sleeves and wear-resistant alloy liners, significantly extending service life.
Intelligent Control: Equipped with a PLC-based touchscreen interface, the system allows real-time monitoring and adjustment of parameters like speed, feed rate, and differential speed. This automation ensures consistent dewatering performance while reducing operational complexity.
Adaptability: Designed for oil-contaminated sludge, the centrifuge handles fluctuating feed conditions (e.g., varying solid content and viscosity) with minimal adjustments, thanks to its robust design and VFD capability.
Middle East Field Performance

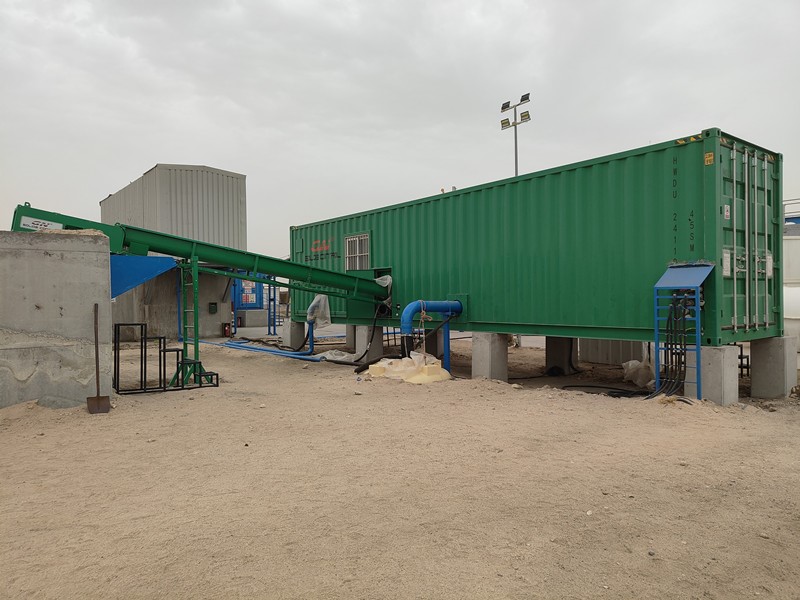

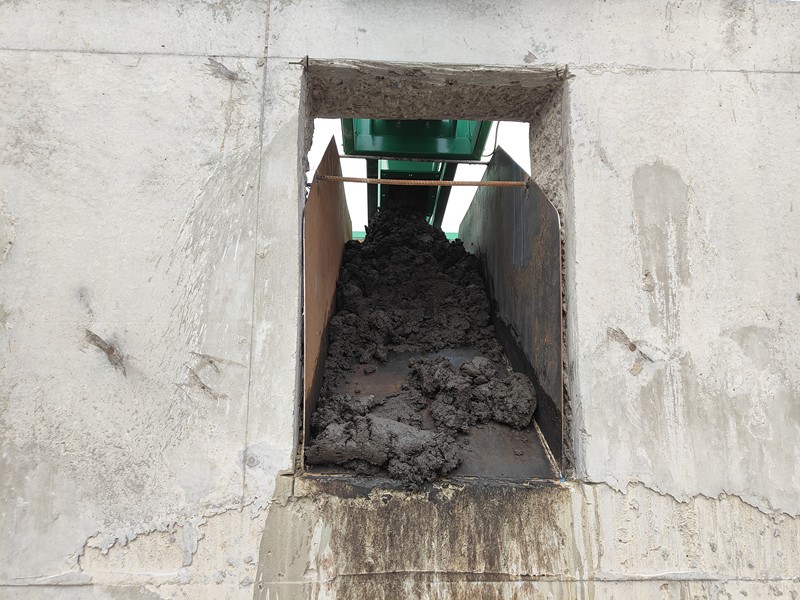

At the Middle East site, the GNLW654-VFD processed post-air-flotation sludge with remarkable efficacy. The dewatered solids achieved a moisture content below 65%, drastically reducing disposal volume and costs. Meanwhile, the clarified effluent met local reuse standards, highlighting the system’s environmental benefits. Clients praised its low energy consumption, minimal chemical dependency, and ease of maintenance—a testament to Gn’s commitment to practical, user-centric engineering.
Conclusion
The successful deployment of Gn’s GNLW654-VFD in the Middle East underscores its technical prowess in addressing complex sludge dewatering challenges. By combining mechanical ingenuity with smart automation, this system sets a new benchmark for oil-contaminated soil remediation. As global demand for sustainable solutions grows, GN continues to lead with innovation, delivering reliable, high-performance equipment tailored to the world’s most demanding applications.
